管道外壁自動噴砂機
◆符合時間范圍 Applicable scope
管類產品工件,如:涂塑鋼管、園鋼、撐桿、螺桿式、大圓錐形形、圓筒形類、圓錐形形型工件產品;應用雙槍(可按必須多槍)及颶風式排塵器和光電材料感覺技能,加快了生產方式學習效率及大的削減了檢修率。 (此門焊機需既定)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆其主要科技參數指標 Main technical parameters
|

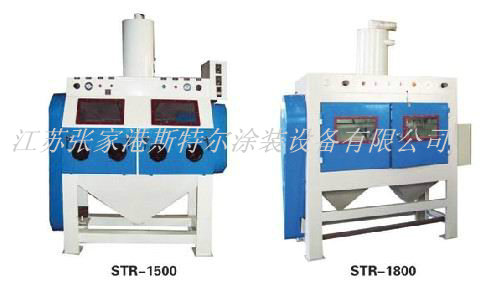

機器人機型 Model |
STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
|
運轉艙規格 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
|
整個機器尺寸大小 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
|
減小冷空氣源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
電 Power |
220v 50Hz |
220v 50Hz |
|
直流變頻電機馬達變速器 Governor |
250W×2 |
250W×2 |
|
破乳器減速機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
|
分離器新風量 Air separator |
35m3/min |
35m3/min |
|
工具權重 Machine weight |
900kg |
900kg |
