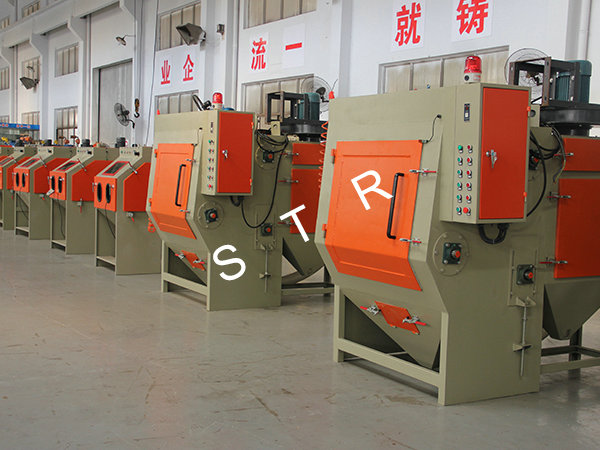

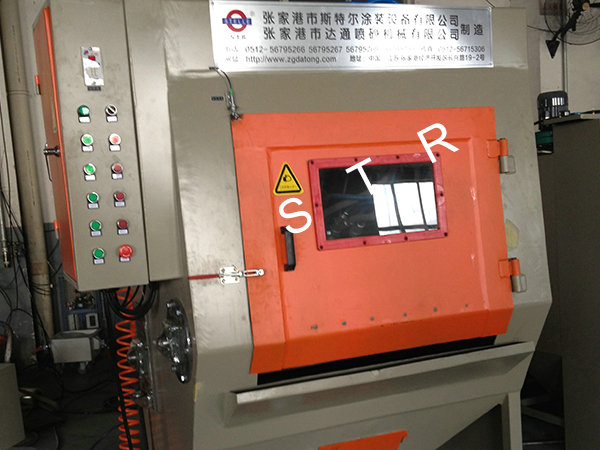

STR-履帶式自動噴砂機(請繼續瀏覽器產生太大的量 裝修案例相冊圖片供關聯性)
◆貨品特質 Product features
1、要具備時控自功噴砂,點動追蹤定位功用。
2、工件表面裝運便捷,運行簡單易行,節約使用人材料。
3、滾筒式尺寸圖及水嘴數量可視老客戶要因素。
4、比較適合于貓瘟部件的一鍵產出,如金屬拉鏈頭、螺栓等加工處理。
1.It has regular automatic spray sand, the point start positioning function.
2.workpiece loading and unloading convenient, simple operation, and save the human resources.
3.roller dimensions and the number of guns can set according to customer requirement.

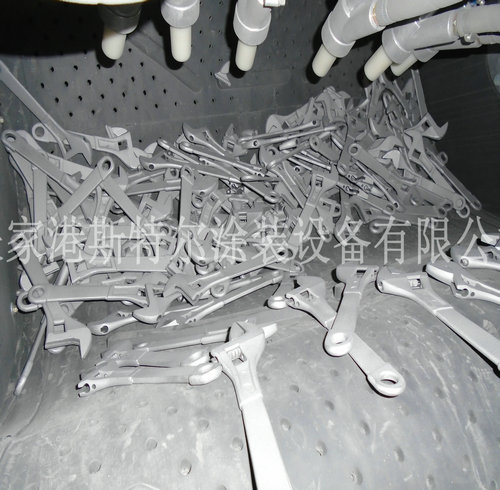

4.It is suitable for small batch production of workpiece, such as zipper head and screws and processing.
◆主要的技術工藝參數值 Main technical parameters
|
POS機規格型號 Model |
STR-履帶式自動噴砂機 |
|
監控主機外觀簡約時尚尺寸 Air end shape dimensions |
L1140×W1000×H1860mm |
|
滾筒機規格 Roller size |
500×600mm |
|
每一次凈化排泥量 Every processing capacity |
30-50kg |
|
輥子交流接觸器 Roller motor |
50HZ ac 380V 3-11KW |
|
滾筒轉動速度 Roller speed |
10RPM |
|
分離出來器電動機Separator moto |
380V 50HZ 3KW |
|
氣體源耍求 Air source requirement |
pressure 2-7 kg/cm2 |
|
耗氣量 Gas consumption |
每打印機噴頭1m3/min(會根據噴咀比例而定) |
