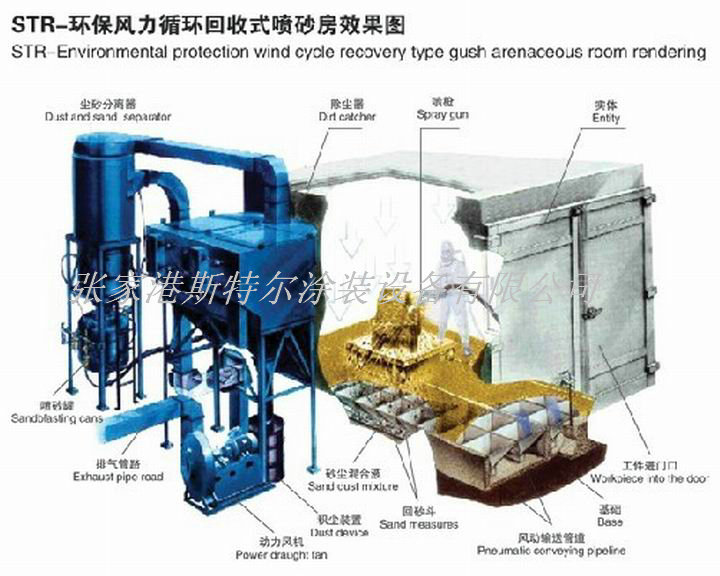

STR-環保風力循環回收式噴砂房效果圖

STR-Environmental protection wind cycle recovery sandblast room designsketch

◆噴砂（丸）房的構造設計

Composition of the sandblasting (shot) room system

1、作業室  Studio

2、噴砂系統性  Sandblasting  system

3、耐磨材料再利用軟件  Abrasive recycle system

4、安裝除塵設備模式  Dust removal system

5、工件的運輸模式  Workpiece conveying system

6、調控系統  Control system

7、照明電器程序  Lighting system

 ◆可用比率 Applicable scope

大一些的鑄件鍛件、氬弧焊鋼的結構、電壓器副油箱、公程機械設備制造廠、電力機車該車輛、加熱爐打造、醫藥機械制造設備制造廠、船舶制造修造等噴砂防銹。

Large castings and forgings welding steel structure, transformer oil tank, engineering machinery, locomotives, boiler manufacturing, chemical machinery, ship building blast cleaned, etc.

 ◆新產品特色 Product features

噴砂房是我公司在蜂窩地板技術的基礎上，自行開發、設計的環保型蜂窩式噴砂（丸）房，可按客戶的產品特性、噴砂要求等設計制作。蜂窩地板噴砂房是利用風機的風力為動力，將磨料通過回料管道吸送到旋風分離器中進行分離，最后進入噴砂系統循環利用。

Sandblasting room  is our company in introducing foreign advanced cell technology based on the floor, , the development, the design of the environmental protection cellular gush arenaceous (shot) room by ourselves, according to customers' product characteristics, sandblasting design requirements, etc. Cellular floor gush arenaceous room is the wind power by fan for abrasive materials, will back through the pipe to cyclone separator suction of separation and finally into gush arenaceous system recycling.

兼有下列的優點：

1、省去了常規噴砂房砂料輸送煤循環系統的螺旋輸送機，斗式提升機以及地下工程，不需建造地坑，節約了地基施工費用，大大節約了工程成本；

2、耐磨材料回收并率高，更加方便清換耐磨材料；

3、重要電氣開關零件均應用進口量貨品，極具性能方面安穩，人身安全可信度，利用生命周期長，定期檢查簡略；

4、噴砂房室體內有高清晰的能見度，室體自然補風，節約能源消耗；

5、超聲波焊接機按照冷凝機組收塵，第一名級按照風暴區分器，第二名級用濾蕊式收塵體統，其總收塵速度達到99.99%之上；

6、在噴砂房正面房頂上部，配有“聲光報警系統”，在噴砂房內，配有急停呼叫按鈕；

7、各設定裝置電控裝置主要采用互鎖設定，當在這當中一設定裝置會出現告警時，有關系設定裝置均中斷做工作，噴槍中斷噴射出；

8、房體所采用工程裝飾方案，表面言簡意賅、自然、規定，消除噪音功能好，且裝方便。

Advantages

1. Omitted conventional Sandblasting room sand conveying coal circulation system, screw conveyor a pattern lift machine and underground project, no need to build the pit and save foundation pit construction cost, greatly reduce the project cost;

2. high  abrasive recycle efficiency, easy to change abrasive;

3. The main electrical components are imported products, have the stable performance, safety and reliability, long life, easy maintenance;

4. Sandblasting room inside has high-resolution visibility, Chambers fill the wind, save energy natural consumption;

5. This machine use double levels of dust removing, the first level is the cyclone separator, the second type is filter dust removal system. Its total removal efficiency may reach above 99.99%;

6. In sandblasting room roof, equipped with a "positive upper sound-light alarm system", in the room, sandblasting with abrupt stop call button;

7. The electric control system uses interlock control, while one system malfunction, related system are to stop working, stop spraying gun;

8. Building decoration design room body appearance, simple , beautiful, standard, good noise reduction result  and convenient installation.
