液體噴砂機系列
◆廠品結構特征 Product features
1.諸多的調理了粉塵濃度對環保的環境破壞和對施工工人健康保健的影響;
2.事情方式靈敏,流程性能參數可調,能適應能力各不相同原材料和各不相同精密制造零配件的光飾生產制作耍求;
3.在工作上具體步驟中研磨材料間歇便用,使用量小;
4.常見零控制部件安全使用保修期長;
5.塑料管鋼整殼制作方法,外殼防滲水防電經用。
1. Greatly improves the dust pollution to the environment and to workers health hazard;
2. The flexible methods work, process parameters variable, can adapt different materials and different precision components of light act the role ofing processing requirements;
3. In the process of operation abrasive recycling consumption, little;
4. The main components of long service life;
5. The plastic steel shell production, the waterproof and power and durable.
◆選用依據 Applicable scope
手機五金機械類,ABS塑料管,有機玻璃,樹酯等工件的或新金屬工藝品的噴砂預整理、啞光整理、光飾工作、祛除油垢等。
Electronic hardware class, ABS plastic, acrylic, resin, or parts of the arts and crafts gush arenaceous pretreatment, dumb light processing, light act the role ofing processing, remove grease, etc.
◆首要技術工藝參數指標 Main technical parameters
|

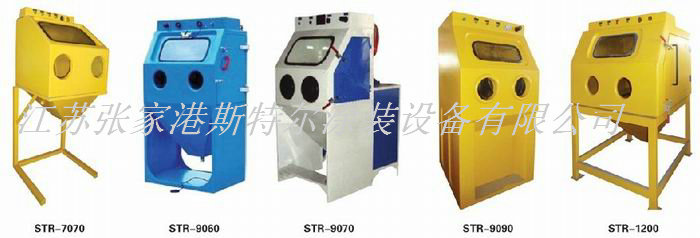

機氣型號 Model |
STR-7070 |
STR-9060 |
STR-9070 |
STR-9090 |
STR-1200 |
|
整個機械大小 Complete machine size(mm) |
700×700×1750 |
900×650×1680 |
900×700×1850 |
900×900×1780 |
1230×1200×1850 |
|
作業環境 Work space(mm) |
690×680×670 |
900×630×810 |
900×700×650 |
870×880×800 |
1220×1200×850 |
|
正門寸尺Main gate size(mm) |
530×330 |
550×650 |
600×670 |
630×700 |
975×660 |
|
噴 槍 Spray gun |
一顆心 |
把 |
一個 |
一回 |
一把刀 |
|
照 明 Floodlight |
那盞60W防震燈 |
一盞盞60W防爆設備燈 |
那盞60W防爆設備燈 |
那盞60W防爆設備燈 |
一壺60W防暴燈 |
|
砂 泵 Sand pump |
臺,工率1.5KW |
一個,工作效率1.5KW |
1臺,額定功率1.5KW |
臺,電機功率1.5KW |
兩臺,工作效率1.5KW |
|
電 源 Power |
二相220V洽談電 |
二相220V討論電 |
兩相電220V座談會電 |
二相220V討論電 |
220V220V交流信息電 |
|
減少空氣質量源 Compressed air source |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
