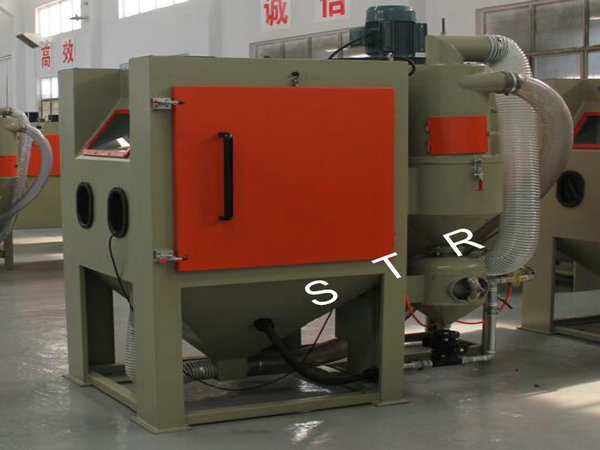

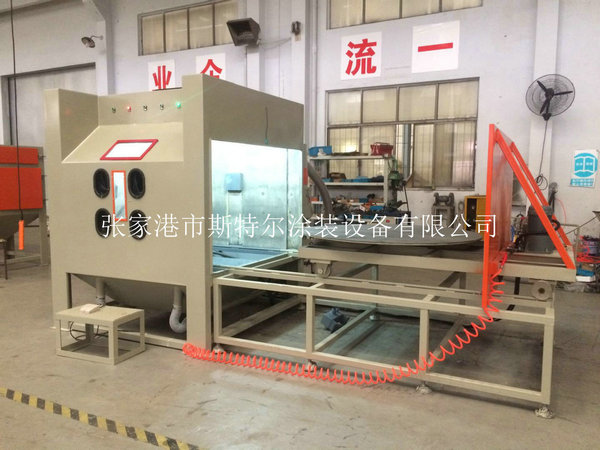

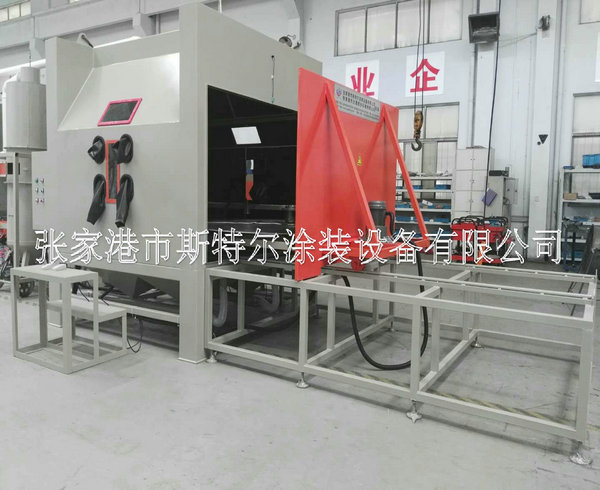

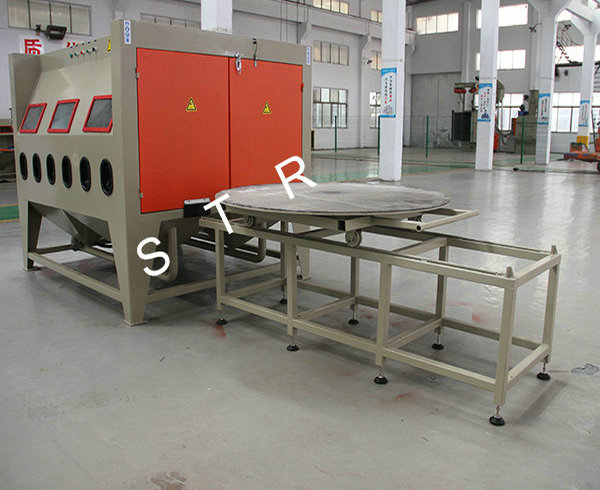

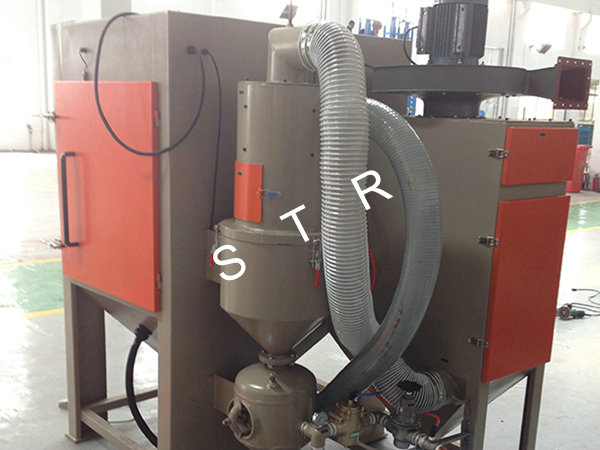

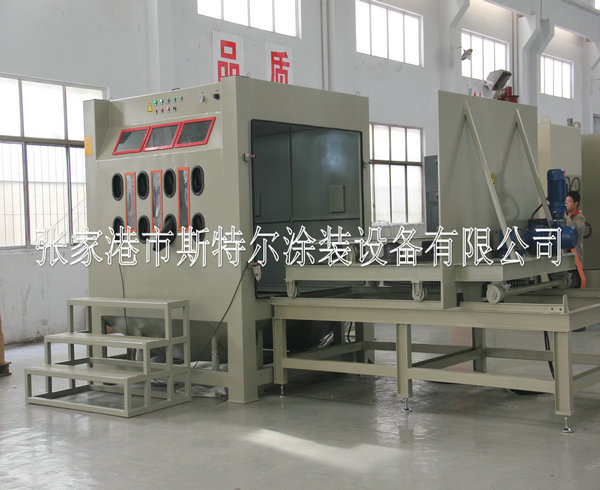

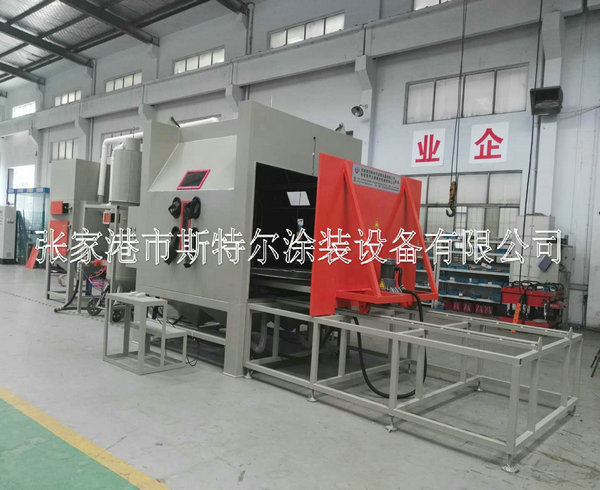

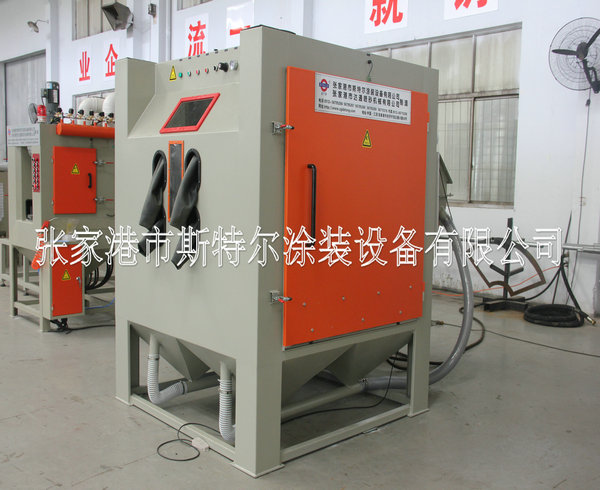

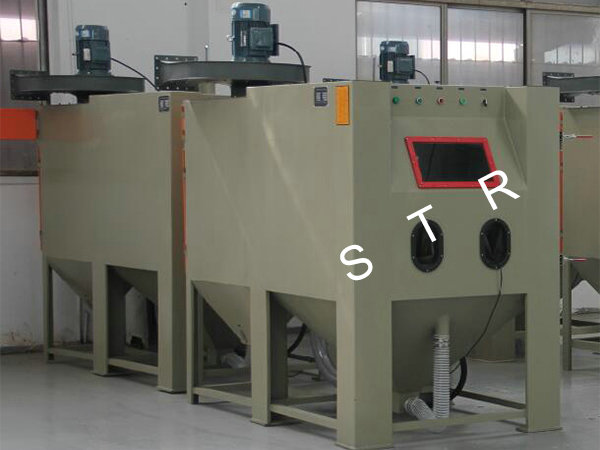

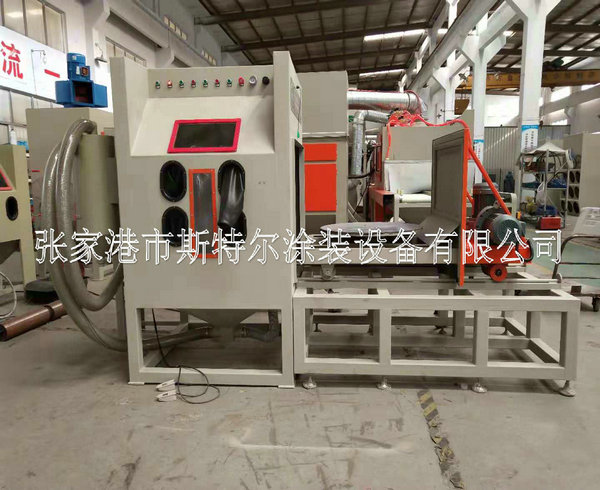

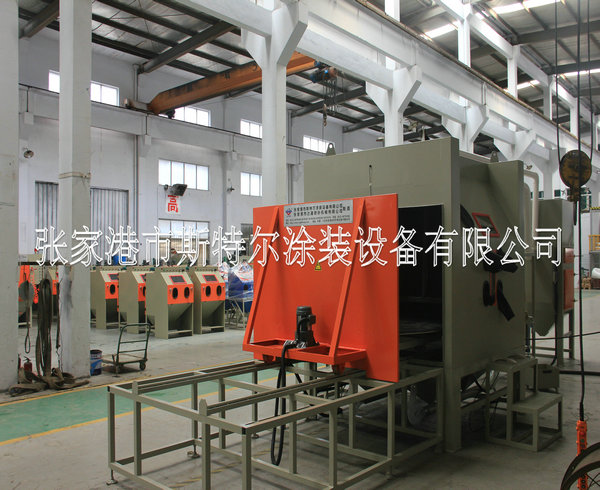

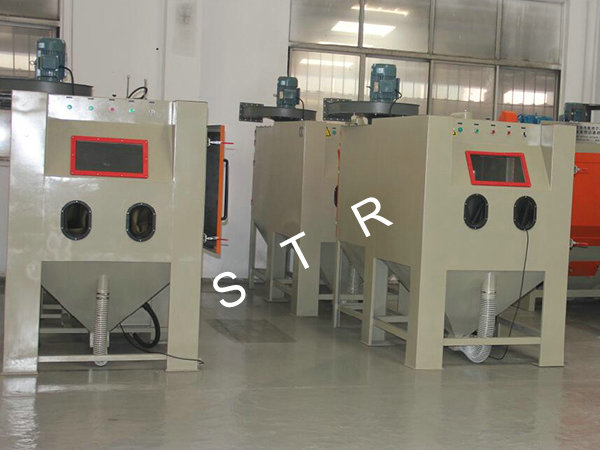

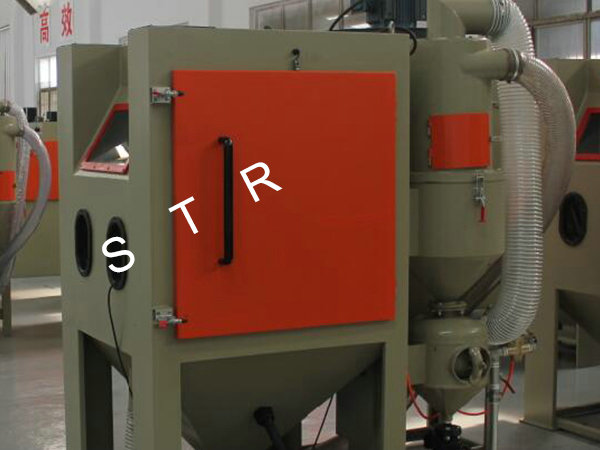

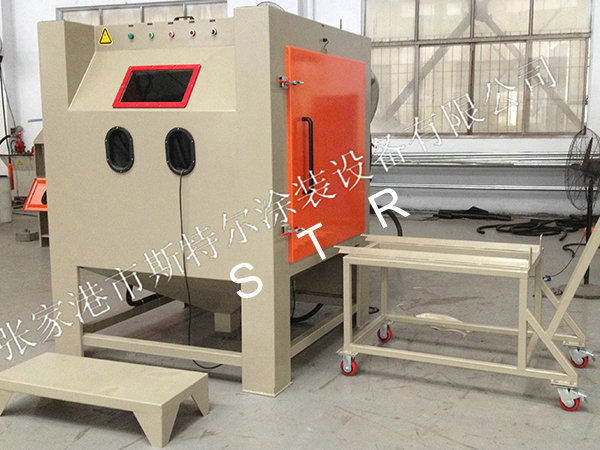

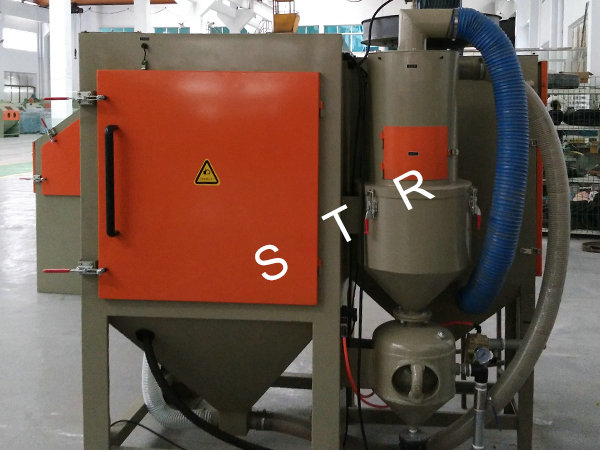

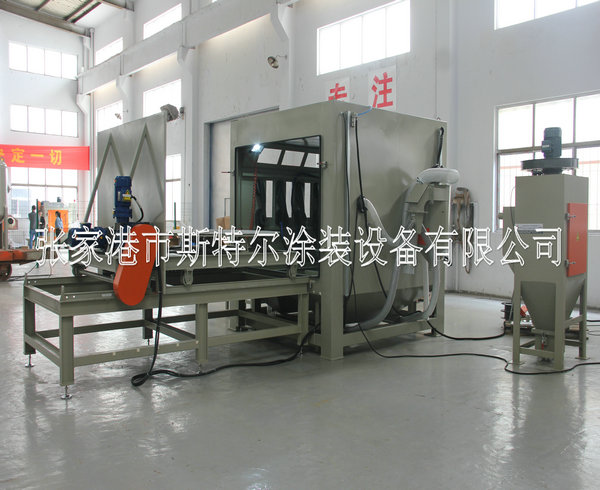

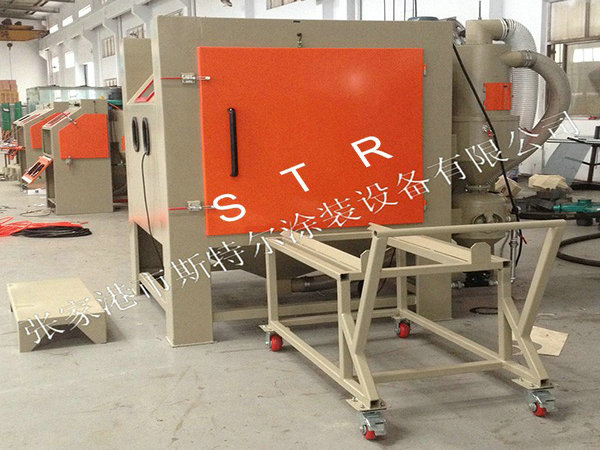

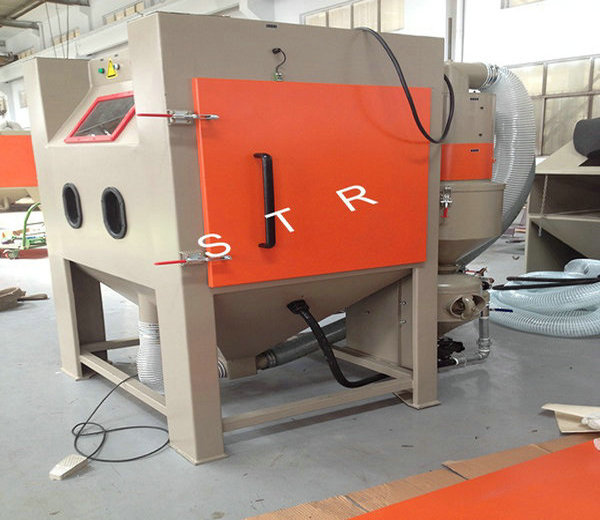

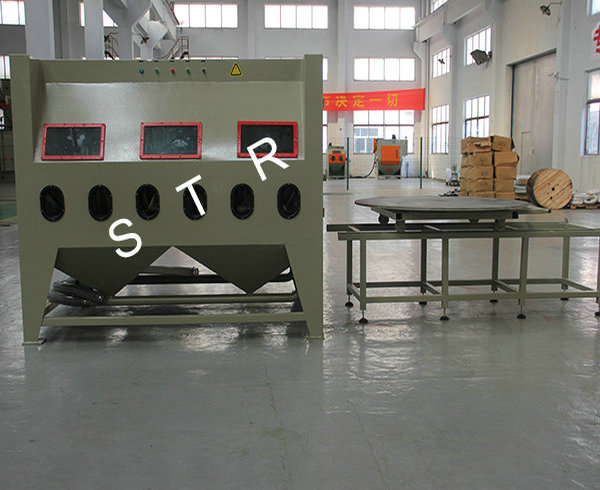

加壓箱式噴砂機系列

產品優點和缺點 Product features(請往上面瀏覽記錄產生太大的量典例像片供參閱)

噴砂機主要用于電鍍、噴漆、噴涂等所有被覆蓋加工前噴砂處理;舊樣翻新清洗;金屬制品及塑膠、水晶、玻璃等表面痕跡消除,啞光霧面處理,使產品表面提升檔次;機加工零件微小毛刺去除;增加金屬件表面硬度,消除應力如彈簧、機加工刀具等;金屬制品及非金屬制品表面刻蝕圖案、文字及防滑處理,如大理石、印章、手柄防滑等。本機應用范圍:適用于大量中小型一般工件及高硬度工件的快速噴砂。如發動機配件、閥門、熱處理工件等。該機型設計新穎,結構科學合理,操作方便,加工性能優越;噴砂速度快,撞擊點深。

Features: Sandblasting machine is mainly used in electroplating, paint, coating area to-be-covered before piating; Old way of refurbished cleaning; Metal products and plastic, crystal, glass surface trace eliminate scattered, dumb, surface process to enhance the grade of the product's surface; Machining parts tiny burrs purify; Increase the metal surface hardness, eliminate stress such as spring, mechanical cutters, etc.; Metal and non-metai products surface etching pattern, writing and prevent slippery processing, such as marble, seals, and handle prevent slippery, etc. The machine is applied the range: applicable to small and medium-sized general of workpiece and high hardness workpieces quickly sandblasting. Such as engine fittings, valves, heat treatment workpiece, etc. This machine has novel, scientific design and reasonable structure, convenient operation, processing superior performance; Gush arenaceous speed, the impact point at deep.

適用性面積 Applicable scope

電子器件五金螺絲類,ABS塑料管,有機板,橡膠模具。中重型鋁件、空間結結構、樹酯等鋁件或加工制作工藝 品噴砂。

Applicable scope: electronic hardware class, ABS plastic, acrylic, resin, workpiece or handicraft sandblasting

主要的能力數據 Main technical parameters供可以參考具體的與業務領域去聯系

機器設備款型 Model

STR-9070

STR-9080

STR-1010

STR-1212

做工作艙圖片尺寸 Internal size(mm)

900×700×790

900×800×700

1000×1000×670

1180×1180×980

組裝機尺寸大小 Complete machine size(mm)

900×700×1780

950×850×1720

1000×1000×2100

1200×1200×2580

降塵箱規格 Dedust box sizes(mm)

600×600×1680

600×600×1680

600×600×1680

800×800×1780

電源模塊 Power

220V 50Hz

220V 50Hz

220V 50Hz

220V 50Hz

機子戶外照航燈 Machine floodlight

220V 20W 節能技術燈

220V 20W 節能降耗燈

220V 20W 節電燈

220V 20W 節約能源燈

離心分離設備發電機 Separator motor

220V 50Hz  0.55-3KW

220V 50Hz  0.55

220V 50Hz  0.55-3KW

220V 50Hz  0.55-3KW

破乳器風速 Separator air volume

8.5m3/min

8.5m3/min

8.5m3/min

8.5m3/min

解壓縮氣源 Compressed air source

2-8bar(kg/cm2)

2-8bar(kg/cm2)

2-8bar(kg/cm2)

2-8bar(kg/cm2)

機械克重 Weight

380kg

380kg

400kg

380kg
